Flow Screed on Joists

Due to Anhydrite liquid screeds flexural strength and durability you can screed directly on to joists. This allows you to use screed on separating floors.

Reduce costs of builds compared to using block and beam
Incorporate underfloor heating on separating floors with ease
Sound reduction for enhanced living

When designing any new builds simply get your preferred floor joist manufacturer to engineer the floor to take the weight of Anhydrite floor screed.

Liquid screed generally has a weight of 900N/m2 (90kg) at 50mm.

Timber Frame manufacturers can design in from the start with ease.

An example build-up would be:

Engineered Joists to Manufacturers design
15mm tongue and groove OSB
25mm PIR insulation (not specifically required)
DPM membrane 1200gu
Underfloor heating
45-50mm Anhydrite Floor Screed

This could not be achieved with a traditional sand and cement screed due to its unforgiving characteristics.

Above is a typical section of a traditionally built house with liquid Anhydrite Screed on both floors. This is built to current NHBC standards.

The Yelofon HD+ System is a perfect partner to Anhydrite screed. You can also incorporate underfloor heating using these systems.

For more details of the systems available click on the link.

Please call us if you require any more information.

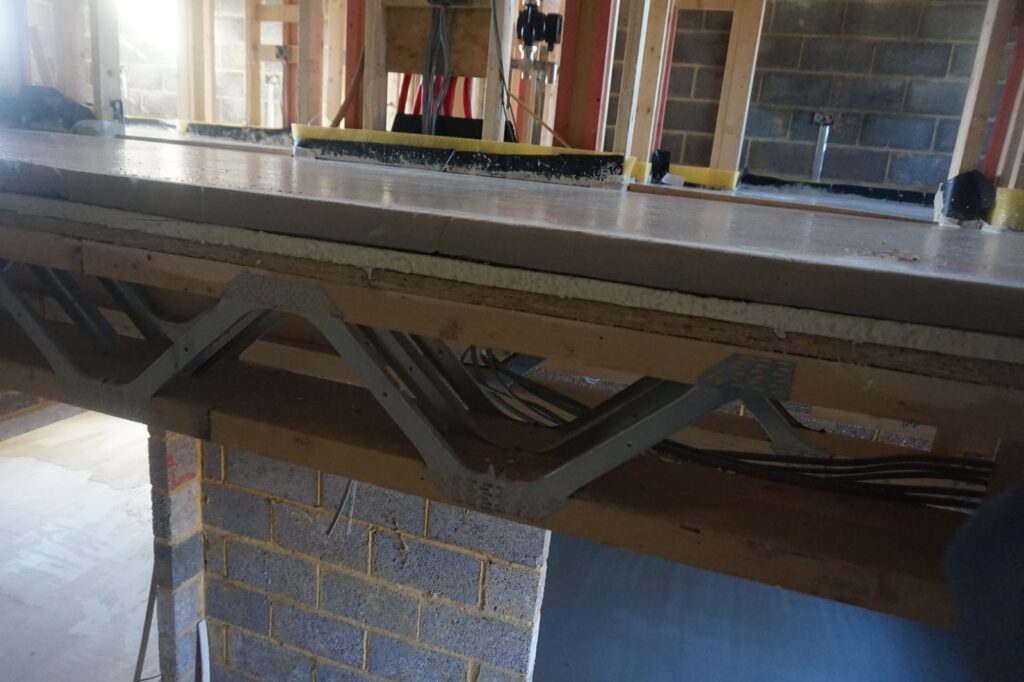

good one

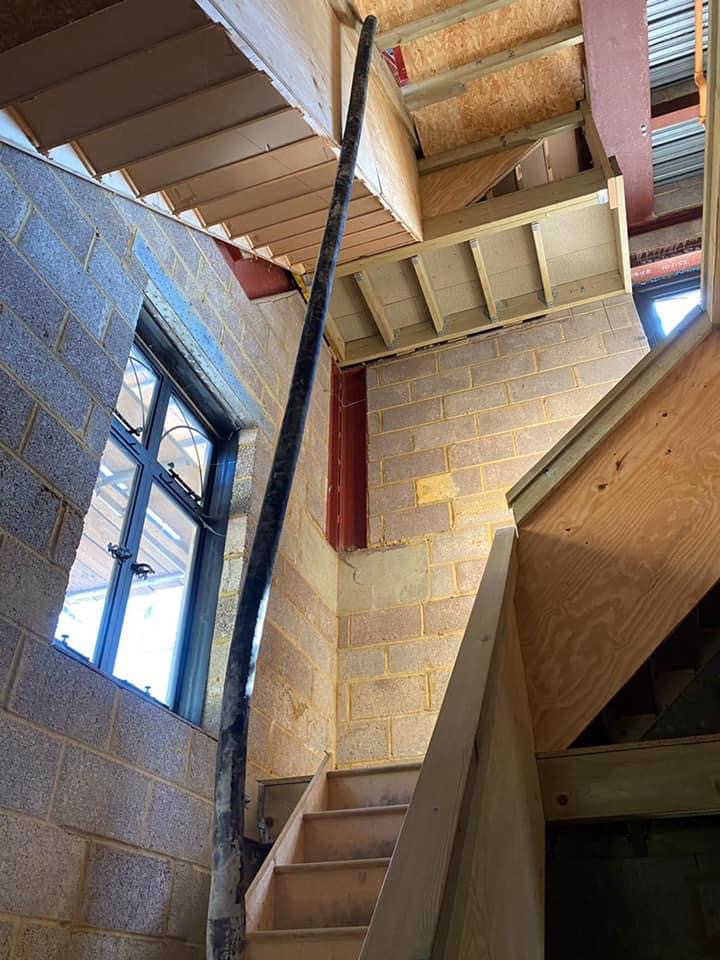

castleok
